Electrical Spec. |
Options | ||
|
Rating voltage |
380VAC |
Flange for set up |
|
|
Rating current |
5A /Ring，10A /Ring，15A /Ring |
The wire exit direction,length is optional |
|
|
Insulation resistance |
1000MΩ@500VDC |
Can combine more circuits:1-126Ring |
|
|
Dielectric strength |
600VDC@50Hz |
Higher voltage and current capacity |
|
|
Electrical noise |
10mΩ@6VDC,50mA, 5Rpm |
Higher rotational seed:1000Rpm、2500Rpm、5000Rpm |
|
|
Mechanical Spec |
Environment |
||
|
Speed |
300Rpm |
Working temperature |
80℃~+400℃ |
|
Torque |
40N.cm |
Mechanical vibration |
MIL-SID-810E |
|
Seal class |
IP54 (IP68 Options) |
Humidity |
10% to 90% RH non-condensing |
|
Contact material |
Precious Metal |
Materials |
Lead Free,RoHS compliant |
|
Lead Wire |
12color 1.0mm2Teflon wire |
CE Certified |
YES |
|
Life |
30million revolutions |
|
|
|
¤ Feature ?Moudle design;Meet the most of requirement ?More install methood for option ?Can combine more circuits:1-126Ring ?Working stable with high temperature ?Fiber brush technology provides maitennance free operation (no cleaning or lubrication required) |
|
|

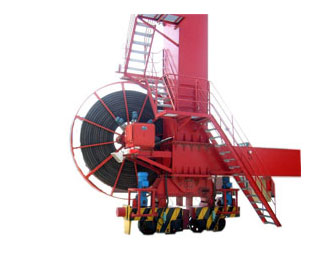

¤ Typical application ?Robotics ?Cable Reels ?Testing equipment ?Rotating platform ?Industrial machinery
|
|

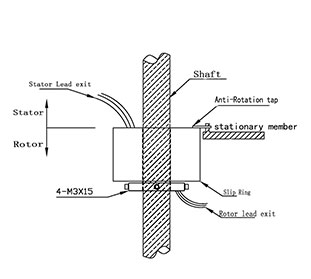

Installation Guide:
|
|
