Specification for FORJ

Wavelength range

650-1650 nm

Insertion loss

<2dB (typical: <0.5 dB)

Return loss

＞40dB (typical:45 dB,2323 C), >50 dB (MJXA)

Maximum speed.

2000 rpm

Pressure compensation

1,000 psi (model RPC for higher pressure)

Pulling strength

10 N (900 um buffer)

Estimated life cycle

200-400 million revolutions

Optical power handlin

23 dBm

Working temperature

-40 to 80 C

Storage temperature

-50 to 85 C

Start up torque

<0.1 Nm

Package style

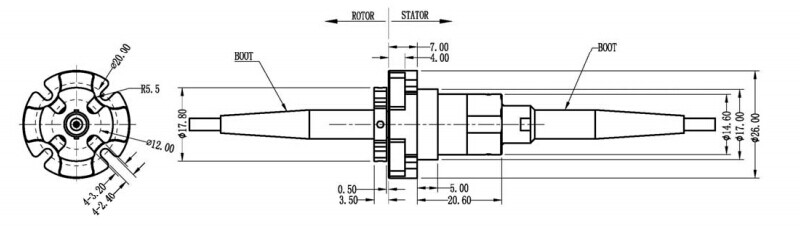

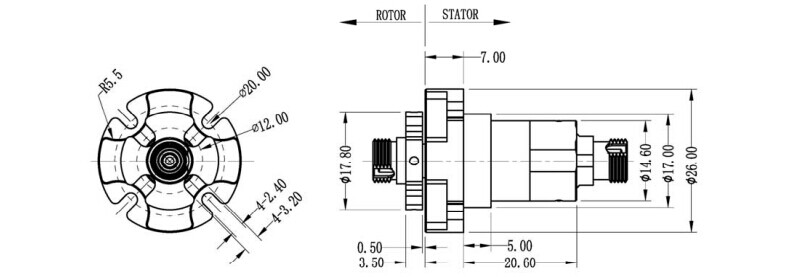

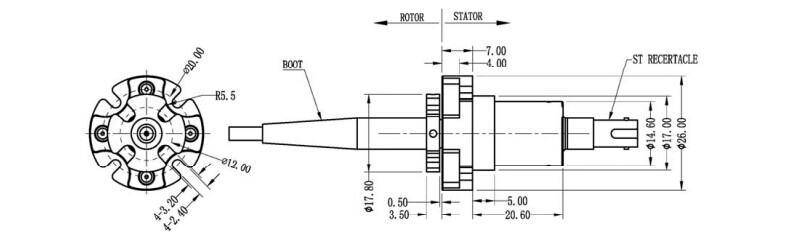

Pigtail or receptacles (FC, FC/APC, or ST)

Fiber types

Single or multimode w/3 mm jacke

Connector types

FC, SC, ST, SMA, or LC (and APC finishes)

Housing material

Stainless steel

Weight

~50 g

IP rating

IP 68 for all models

Environment

Mechanical vibration

MIL-SID-810E

HumidityHumidity Humidity

10% to 90% RH non-condensing10% to 90% RH non-condensing

Materials Materials

Lead Free, RoHS compliant

CE CertifiedCE Certified

YESYES

The life of slip ring depend on the operation speed , temperature ,environment

Options

A variety of fiber size and length of the jumpers

Optical fiber type: single channel, single mode, multimode multi pass through

Fiber optic connectors: FC, PC, ST or direct rejection pigtail

Fiber length: more customer requirements

Number of optical channels: single, double, multiple
