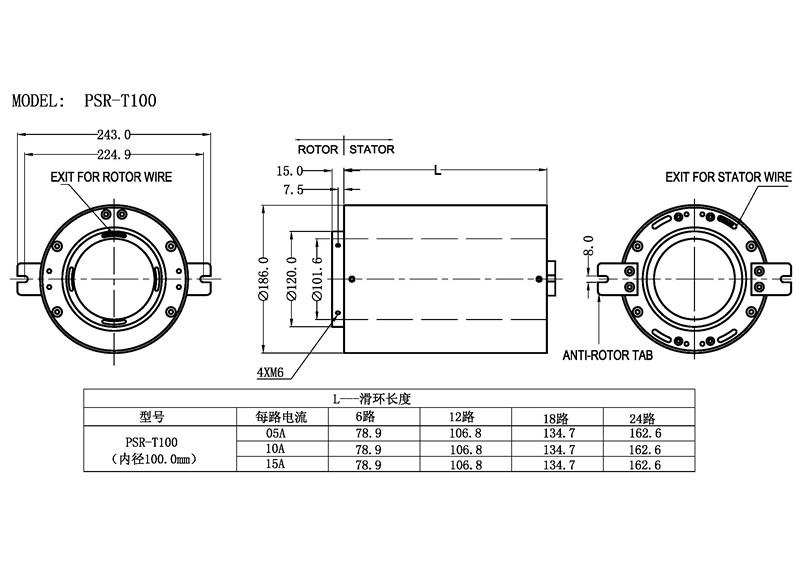

Electrical Spec. |
Options | |||
|
Circuit |
6-300 |
Flange for set up |
||
|
Rating voltage |
380VAC |
The wire exit direction,length is optional |
||
|
Rating current |
5A /Ring，10A /Ring，15A /Ring |
Can combine more circuits:1-300Ring |
||
|
Insulation resistance |
1000MΩ@500VDC |
Higher voltage and current capacity |
||
|
Dielectric strength |
600VDC@50Hz |
Higher rotational seed:1000Rpm、2500Rpm、5000Rpm、10000Rpm |
||
|
Electrical noise |
10mΩ@6VDC,50mA, 5Rpm |
|
||
|
Mechanical Spec |
Environment |
|||
|
Through bore |
100mm |
Working temperature |
-40℃~+80℃ |
|
|
Speed |
300Rpm |
Mechanical vibration |
MIL-SID-810E |
|
|
Torque |
40N.cm |
Humidity |
10% to 90% RH non-condensing |
|
|
Seal class |
IP54 (IP68Options) |
Materials |
Lead Free,RoHS compliant |
|
|
Contact material |
Precious Metal |
CE Certified |
YES |
|
|
Lead Wire |
12 color Teflon wire |
|
|
|
|
Life |
30million revolutions |
|
|
|
|
¤ Feature ?Fiber brush technology provides miantenance free operation-no cleaning or lubrication requirement ?Moudel design ;Meet the most of requirement ?More install method for option ?Can combine signal and power in same slip ring ?Can combine more circuits:1-100Ring
|
|
|
¤ Typical Application ?Pharmaceutical Machine ?Crane ?Flling Machinel ?Cabel Reels ?Rotating platform
|
|
Installation Guide:
|
|
|
CAUTION: Because of possible geometric mismatching between the customer's application and the slip ring,'hard mouting'of both ends of the slip ring(i.e.securing the rotor and stator such that there is no floating during operation) is not recommended and may cause premature failure. |
|
